COBOL Graphic Print Routines Help



Introduction



    How would you like to use COBOL to print images, graphics, charts, shapes, lines, fonts and colors just like the windows applications you use ?  The ACS Corporation  supplies routines that allow COBOL programs to utilize the MS Windows Graphic Device Interface for printers. This means COBOL programs can print graphical items such as:

     - Print Text of various size, weight, color and font

              This font and color, or this font and color, or this font and color, and many others.
     - Print Forms, photos and Images for logos, invoices, statments, and various reports. Support for formats of BMP, GIF, PNG, TIF,  or JPEG

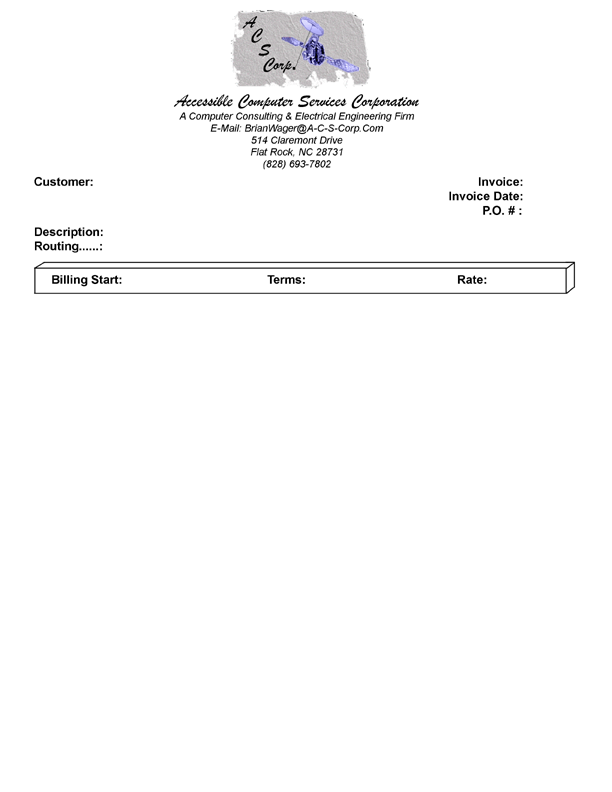

                Sample Form 1, click here

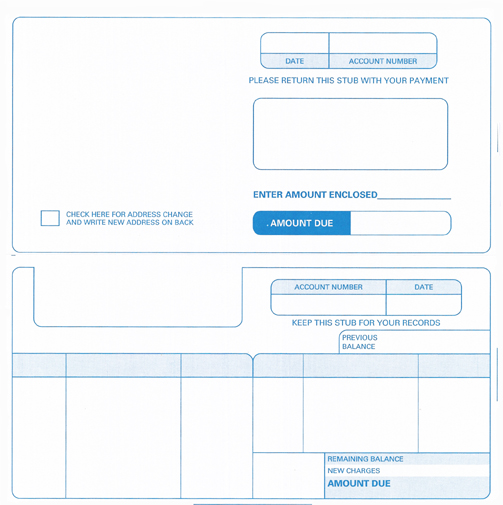

                Sample Form 2, click here






     - Print Shapes for charts, graphs, and highlighting using various sizes and colors. Support for rectangles, circles and ellipses with or without borders


    These routines are supported for Windows 98SE thru Vista.



    Graphical printing is easy though different from traditional COBOL printing. Graphical printing is based on a X,Y grid. The X,Y grid covers the width and height of a sheet of paper. Each X,Y location on the grid is represented by a point or dot. Whereas traditional COBOL printing is based on spaces, characters and line feeds.

    With this in mind, your typical color printer today will print at 300 dots per inch or DPI. Given a typical sheet of paper being 8.5 inches by 11 inches. This would equate to 2,550 dots/X axis co-ordinates by 3,300 dots/Y axis co-ordinates. Just the opposite if printing in Landscape mode.

    All the drawing routines provided (Such as draw an image, text, rectangle or ellipse.) will require a X,Y point to complete the desired task. The X,Y point or co-ordinate will define the top left most point which the drawing will begin. Co-ordinates X=0,Y=0 mean the function will begin drawing at the left and topmost piece of the paper. There are no negative X,Y values. For example on a 300dpi printer, starting X,Y at location 300,300 would indicate one inch to the right and one inch down on the paper.

    It is allowable to draw on top of images, text, rectangles or ellipses before releasing to print. For example, draw a rectangle then put text on top of the rectangle such that the text appears inside. Another example, scan or create an image of an invoice form using your favorite drawing program (like PhotoShop). Draw that image with the COBOL routine, then put in the variable data like date, amount, ect by drawing the text on top of that image. This can greatly  reduce the amount of code needed to draw your own form. Hint: JPEG format is great for pictures. GIF, TIF, or PNG formats are great for forms.

     The COBOL programmer will use the following sequence of routines for graphical printing:


 - Call Doc_Start
    This starts the print Job. The user will be asked to select the printer using the standard windows printer dialog box. This routine is called only once per print   job. Upon return, the routine gives you information about the selected printer (X,Y DPI resolution) and whether or not the user cancelled the job.

 - Call Doc_TextOut, Doc_BitMapOut, ect. (various drawing routines)
    These routines perform the desired drawing at the location specified. Execute as many of these routines as desired per page.

 - Call Doc_NewPage
    This signals the completion of a page and a new blank page is now allocated.

 - Call Doc_End.
    This signals the end of the print job. All pages are released to the printer. No pages will be printed until this function is called. Doc_Start must be called to start another print job.

    There are parameters associated with each of these functions that allow the programmer to control the graphics. Such as forcing landscape mode, color choices, solid or hollow rectangles, ect. Refer to the documentation on each of the functions for a complete parameter list and explanation.


    Any reference to X or Y parameter is referring to a starting point on the aforementioned grid or the bottom right most co-ordinates of a binding rectangle.


    Any reference to width or height is referring to the number of dots to allocate for a particular function. e.g. how many dots high and how many dots wide for a ellipse. Allocating dots for width and heights for different printer resolutions is described in detail below.


    A NULL terminated string is a string of characters that is ended in low-value or a x'00'.

Doc_Start

    The Doc_Start function is the first function an application calls to start graphic printing. It displays the Windows Standard Printer Dialog box, initialize a new page, and sets the page orientation.


 Parm 1 DocStart-Fields

Parameters


    Parm 1 Is a reference/pointer to a collection of data fields that define the attributes of the printer. These data fields are explained below.

Document-Handle

    Identifies the window handle that will own this process This parameter can be NULL or binary zeroes.

Paper-Orientation

    Identifies whether the portrait or landscape printing will be used. Predefined fields of Paper-Portrait, Paper-LandScape  and Paper-Users-Choice have been provided. Paper-Users-Choice lets the users choose portrait or landscape from the standard printers dialog box. Paper-Portrait, Paper-LandScape force this mode with no override from the user.
Printer-Selection

    Send print directly to the default printer or prompts for printer selection using the standard windows dialog box or sends print directly to a specified printer. Predefined fields of Use-Default-Printer, Prompt-For-Printer, and Use-Printer-Specified have been provided.
X-Dots-Per-Inch

    Is the printer's resolution on the X axis. This value is set/returned from the routine.
Y-Dots-Per-Inch

    Is the printer's resolution on the X axis. This value is set/returned from the routine.
Printer-Specified

    Identifies the name of the printer to that receives print. This is the same name as seen on the "Printers" control panel function.
Print-Document-Name

    This is the name of the print job, you will see, on the print control window. If not specified it will default to "ACS Corp Print" Programmer's often put the name of the program generating the print data into this field.

Return Values
    A value of zero indicates success. A value of one indicates the user cancelled out of the Windows Standard Printer Dialog box or failure.

 Remarks
     Windows has 2 different standard dialog boxes for printing. If a valid windows handle is specified, one dialog box is displayed. If the windows handle is NULL or binary zeroes, a different looking dialog box is displayed. Both dialog boxes perform the same function.

    If you choose Printer-Selection of 3 (User-Printer-Specified), you must supply the name of the printer in the Printer-Specified field. All print will be directed to this printer. Many customers use this option to direct print to a printer that is not really a printer. For example, directing print to a printer that creates a PDF file rather than hardcopy. The PDF file can then be emailed around the world. Maybe this PDF file is a status report, sales graph or ???. There are quite a few products that claim to capture print and create a PDF file. We like the product "PDF Factory".

    X-Dots-Per-Inch and Y-Dots-Per-Inch are returned from the call. They identify the resolution of the chosen printer. It could be 300dpi, 600dpi or greater. Some Printers have a higher Y axis resolution than the X axis. Today some are as high as 4,800 DPI. If you are developing for printers of varying resolutions then you must use these parameters to scale the position of your text and graphics. For example, printing rectangle with a height and width of 300 dots on a 300dpi printer will appear 1/2 the size on a 600dpi printer.
    To create the rectangle the same size across all types of printer resolutions you must use the Dots Per Inch mentioned above to calculate the desired width and height. You must also think in terms of inches or fractions of an inch. For example, say you want to create a 1/2 inch wide rectangle. Multiply

X-Dots-Per-Inch by .5 to get the number of dots required for 1/2 of an inch. If the printer has a resolution of 300dpi the product(width) would be 150. If 600dpi the product(width) would be 300.
    Calculating heights, widths and offsets in this manner will give you a consistent report across varying printer resolutions.

 Code Example
     SET PAPER-PORTRAIT TO TRUE.
     PERFORM DOC-START.
     IF RETURN-CODE-NUM = 0
         user selected a printer, begin draw functions
 Doc-Start.
     Call 'S_Doc_Start' USING BY REFERENCE DocStart-Fields GIVING RETURN-CODE-NUM.



Draw Functions

    The Draw Functions are a set of routines that allow the COBOL programmer to output images, lines, rectangles, ellipses, text by font, with borders and colors. The following details each of the drawing functions available.



Doc_BitMapOut

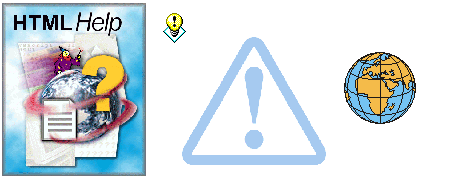

    The Doc_BitMapOut function draws a windows bitmap or image onto the printer page. Samples:



              Sample Form 1, click here



              Sample Form 2, click here








Parm 1 BitMapOut-Fields

Parameters
 Parm 1 Is a reference/pointer to a collection of data fields that define the attributes of the BitMap to be printed. These data fields are explained below.

 BitMapBackGround

    Indicates whether the BitMap background should be transparent or not
 BitMapOutX

    Identifies the X axis position of the top left corner the BitMap will be aligned.
 BitMapOutY

    Identifies the Y axis position of the top left corner the BitMap will be aligned.
 BitMapOutWidth

    Identifies the output width.

 BitMapOutHeight

    Identifies the output height.
 BitMapOut-String

    A NULL terminated string that identifies the path and name of the BitMap to be printed.

Return Value
    A value of zero indicates success. A value of one indicates failure.

Remarks.
    This function may be called several times for one page. Printing several BitMaps onto one page.

    Only BMP,GIF,TIFF,JPEG and PNG formats are supported at this time.

    The quality is dependent on the printer and printer driver. Be aware that BitMaps created viewed on a computer screen can appear much larger than the same BitMap printed. This is due to a typical computer screen displaying images at 72 DotsPerInch and the typical printer rendering images at 300 Dots Per Inch or greater. Create your images accordingly.

    BitMapOutWidth and BitMapOutHeight are optional fields. If left zero the original bitmap pixel width and height will be used. If filled in the original bitmap will be stretched to these dimensions. This can be used to create a consistently sized image across multiple printer resolutions. These fields have no effect on transparent bitmaps. The Doc_Start routine has a description of how to calculate these fields.

Code Example
         MOVE 0 TO BitmapOutX ,
         MOVE 0 TO BitMapOutY
         SET BitMapTransparent-Yes TO TRUE
         STRING 'C:\InvoiceTemplate.PNG', x'00' DELIMITED BY SIZE INTO BitMapOut-String
         PERFORM Doc-BitMapOut
    Doc-BitMapOut.
        Call 'S_Doc_BitMapOut' USING BY REFERENCE BitMapOut-Fields GIVING RETURN-CODE-NUM.



Doc_TextOut

    The Doc_TextOut function draws a text string onto the printer page. Samples:



   Bold Courier 14pt

  Regular Castellar 18pt

     Edwardian Script Bold

           Normal Goudy Stout



Parm 1 TextOut-Fields

Parameters
 Parm 1 Is a reference/pointer to a collection of data fields that define the attributes of the text to be printed. These data fields are explained below.

 TextOutX

    Is the X axis position of the top left corner of the text on the page.
 TextOutY

    Is the Y axis position of the top left corner  of the text on the page.
 TextOut-Alignment

    Defines if each line of text will be justified left or right or centered
 TextOut-Font

    Is the font used for the text to be printed
 TextOut-Weight

    Is the thickness of the text to be printed.
 TextOut-Color

    Is the color of the text to be printed.
 TextOut-CharacterSize

    Is the size of the characters within the text to be printed.
 TextOut-Italic

    Indicates whether the text to printed should be italic or not.
 TextOut-UnderLine

    Iindicates whether the text to printed should be underlined or not.
 TextOut-StrikeOut

    Indicates whether the text to printed should be struckout or not.
 TextOut-String

    Is a NULL terminated string of text to be printed. It represents single or multiple lines of text.


Return Value
    A value of zero indicates success. A value of one indicates failure.

Remarks
    The TextOut-String can contain carriage-return, line-feed (x'0d', x'0a') codes to separate lines. Tab-characters (x'09') are valid and will expand to the default of 8 spaces. No other traditional COBOL printer codes are recognized.
    The order and size of these data fields should not be changed.
    Some common colors are provided but you may add your own colors by referring to the Document-Colors data item.

    Some common fonts provided but you may add other fonts by referring to the TextOut-Font data item. Be aware special fonts may not exist on another persons computer. If this happens you will need to install that font on that computer. Windows will try to match (as close as it can) a non-existing font, but the results are not always satisfactory.

Code Example
     MOVE 100 TO TextOutX
     MOVE 1 TO TextOutY
     SET TextOut-Center TO TRUE
     STRING 'some purple goes here', x'00'
     DELIMITED BY SIZE INTO TextOut-String
     SET TextOut-LucidaConsole TO TRUE
     MOVE 10 TO TextOut-CharacterSize
     SET TextOut-Medium TO TRUE
     MOVE Doc-Purple TO TextOut-Color
     SET TextOut-Italic-Off TO TRUE
     SET TextOut-UnderLine-Off TO TRUE
     SET TextOut-StrikeOut-Off TO TRUE
     PERFORM Doc-TextOut
 Doc-TextOut.
     Call 'S_Doc_TextOut' USING BY REFERENCE TextOut-Fields GIVING RETURN-CODE-NUM.



Doc_RectangleOut

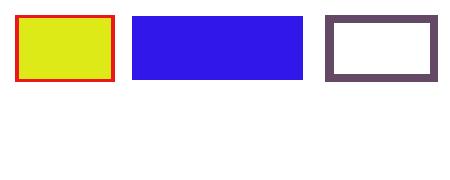

    The Doc_RectangleOut function draws a rectangle onto the printer page. Samples:

Parm 1 RectangleOut-Fields

Parameters
 Parm 1 Is a reference/pointer to a collection of data fields that define the size of the rectangle to be printed. These data fields are explained below.

 RectOut-TopLeftX

    Is the X axis position of the top left corner of the rectangle.
 RectOut-TopLeftY

    Is the Y axis position of the top left corner of the rectangle.
 RectOut-BottomRightX

    Is the X axis position of the bottom right corner of the rectangle.
 RectOut-BottomRightY

    Is the Y axis position of the bottom right corner of the rectangle.
 RectOut-OutLineWidth

    Is the width of the rectangle's outline. The larger the number the thicker the outline.
 RectOut-OutLineColor

    Is the color of the rectangle's outline.
 RectOut-Style

    Specifies whether the rectangle will be solid or hollow.
 RectOut-FillColor

    Is the color used to fill the rectangle. If the style is "Hollow" this color is ignored.

Return Value
    A value of zero indicates success. A value of one indicates failure.

Remarks

    Some common colors are provided but you may add your own colors by referring to the Document-Colors data item.

Code Example
     MOVE 10 TO RectOut-TopLeftX
     MOVE 10 TO RectOut-TopLeftY
     MOVE 100 TO RectOut-BottomRightX
     MOVE 100 TO RectOut-BottomRightY
     MOVE 5 TO RectOut-OutLineWidth
     MOVE Doc-Purple TO RectOut-OutLineColor
     SET RectOut-Solid TO TRUE
     MOVE Doc-Yellow TO RectOut-FillColor
     PERFORM Doc-RectangleOut
Doc-RectangleOut.
     Call 'S_Doc_RectangleOut' USING BY REFERENCE RectangleOut-Fields GIVING RETURN-CODE-NUM.


Doc_RoundRectangleOut

    The Doc_RoundRectangleOut function draws a rectangle onto the printer page with rounded corners. This function has the same parameters as RectangleOut with two additons. Corner Width and Corner Height. These two additional parameters define the curve of the corners. Samples:


Parm 1 RoundRectangleOut-Fields

Parameters
 Parm 1 Is a reference/pointer to a collection of data fields that define the size of the rectangle to be printed. These data fields are explained below.

 RoundRectOut-TopLeftX

    Is the X axis position of the top left corner of the rectangle.
 RoundRectOut-TopLeftY

    Is the Y axis position of the top left corner of the rectangle.
 RoundRectOut-BottomRightX

    Is the X axis position of the bottom right corner of the rectangle.
 RoundRectOut-BottomRightY

    Is the Y axis position of the bottom right corner of the rectangle.
 RoundRectOut-OutLineWidth

    Is the width of the rectangle's outline. The larger the number the thicker the outline.
 RoundRectOut-OutLineColor

    Is the color of the rectangle's outline.

 RoundRectOut-Style

    Specifies whether the rectangle will be solid or hollow.
 RoundRectOut-FillColor

    Is the color used to fill the rectangle. If the style is "Hollow" this color is ignored.
 RoundRectOut-CornerWidth

    Is the width of the curve used to round the corners of the rectangle. Larger the number the larger the curve.
 RoundRectOut-CornerHeight

    Is the height of the curve used to round corners of the rectangle. Larger the number the larger the curve.

Return Value
    A value of zero indicates success. A value of one indicates failure.

Remarks
    Some common colors are provided but you may add your own colors by referring to the Document-Colors data item.

Code Example
     MOVE 10 TO RoundRectOut-TopLeftX
     MOVE 10 TO RoundRectOut-TopLeftY
     MOVE 400 TO RoundRectOut-BottomRightX
     MOVE 500 TO RoundRectOut-BottomRightY
     MOVE 5 TO RoundRectOut-OutLineWidth
     Move Doc-Purple TO RoundRectOut-OutLineColor
     SET RoundRectOut-Solid TO TRUE
     MOVE Doc-Cyan TO RoundRectOut-FillColor
     MOVE 50 TO RoundRectOut-CornerWidth
     MOVE 80 TO RoundRectOut-CornerHeight
     PERFORM Doc-RoundRectangleOut
Doc-RoundRectangleOut.
     Call 'S_Doc_RoundRectangleOut' USING BY REFERENCE RoundRectangleOut-Fields, GIVING RETURN-CODE-NUM.



Doc_EllipseOut

    The Doc_EllipseOut function draws a Ellipse onto the printer page. Samples:



Parm 1 EllipseOut-Fields

Parameters
 Parm 1 Is a reference/pointer to a collection of data fields that define the size of the Ellipse to be printed. These data fields are explained below.

 EllipseOut-TopLeftX

    Is the X axis position of the top left corner of the Ellipse.
 EllipseOut-TopLeftY

    Is the Y axis position of the top left corner of the Ellipse.
 EllipseOut-BottomRightX

    Is the X axis position of the bottom right corner of the Ellipse.
 EllipseOut-BottomRightY

    Is the Y axis position of the bottom right corner of the Ellipse.
 EllipseOut-OutLineWidth

    Is the width of the Ellipse's outline. The larger the number the thicker the outline.
 EllipseOut-OutLineColor

    Is the color of the Ellipse's outline.
 EllipseOut-Style

    Specifies whether the Ellipse will be solid or hollow.
 EllipseOut-FillColor

    Is the color used to fill the Ellipse. If the style is "Hollow" this color is ignored.

Return Value
    A value of zero indicates success. A value of one indicates failure.

Remarks
    Some common colors are provided but you may add your own colors by referring to the Document-Colors data item. TIP: To create a circle make the X,Y co-ordinates equal.

Code Example
     MOVE 100 TO EllipOut-TopLeftX
     MOVE 100 TO EllipOut-TopLeftY
     MOVE 200 TO EllipOut-BottomRightX
     MOVE 300 TO EllipOut-BottomRightY
     MOVE 5 TO EllipOut-OutLineWidth
     Move Doc-Purple TO EllipOut-OutLineColor
     SET EllipOut-Solid TO TRUE
     MOVE Doc-Yellow TO EllipOut-FillColor
     PERFORM Doc-EllipseOut.
Doc-EllipseOut.
     Call 'S_Doc_EllipseOut' USING BY REFERENCE EllipseOut-Fields GIVING RETURN-CODE-NUM.



Doc_EdgeOut

    The Doc_EdgeOut function draws edges onto the printer page. Single edge, right angle edges or rectangle edges can be drawn. It can also draw a rectangle similar to Doc_RectangleOut. Samples:


Parm 1 EdgeOut-Fields

Parameters
 Parm 1 Is a reference/pointer to a collection of data fields that define the size and types of Edges to be printed. These data fields are explained below.

 EdgeOut-TopLeftX

    Is the X axis position of the top left corner of the Edge.
 EdgeOut-TopLeftY

    Is the Y axis position of the top left corner of the Edge.
 EdgeOut-BottomRightX

     Is the X axis position of the  bottom right corner of the  Edge.
 EdgeOut-BottomRightY

    Is the Y axis position of the bottom right corner of the Edge.
 EdgeOut-Type

    Defines the look of the edge to be printed.
 EdgeOut-Edges

    Defines which edges of the X,Y co-ordinates are to be printed.
 EdgeOut-OutLineWidth

    Is the width of the Edge's outline. The larger the number the thicker the outline. A value of zero indicates no outline is to be drawn
 EdgeOut-OutLineColor

    Is the color of the Edge's outline. EdgeOut-Style specifies whether the Edge will be solid or hollow.
 EdgeOut-FillColor

    Is the color used to fill the Edge. If the style is "Hollow" this color is ignored.

Return Value
    A value of zero indicates success. A value of one indicates failure.

Remarks
    Some common colors are provided but you may add your own colors by refering to the Document-Colors data item. TIP: You are defining the X,Y co-ordinates of a rectangle, then selecting which edges of the rectangle you wish to print

Code Example
     MOVE 10 TO EdgeOut-TopLeftX
     MOVE 10 TO EdgeOut-TopLeftY
     MOVE 300 TO EdgeOut-BottomRightX
     MOVE 300 TO EdgeOut-BottomRightY
     SET EdgeOut-Raised TO TRUE
     SET EdgeOut-Rectangle TO TRUE
     MOVE 5 TO EdgeOut-OutLineWidth
     Move Doc-Yellow TO EdgeOut-OutLineColor
     SET EdgeOut-Solid TO TRUE
     MOVE Doc-Cyan TO EdgeOut-FillColor
     PERFORM Doc-EdgeOut.
Doc-EdgeOut.
     Call 'S_Doc_EdgeOut' USING BY REFERENCE EdgeOut-Fields GIVING RETURN-CODE-NUM.





Doc_LineOut
 The Doc_LineOut function draws a line onto the printer  page. Upto but not including the destination co-ordinates. The line can be of varying widths, colors, lengths and types. Samples:

------------------------------------------------------

-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-.-

-..-..-..-..-..-..-..-..-..-..-..-..-..-..-..-..-..-..-..-..-

____________________________________


Parm 1 LineOut-Fields

 Parameters
 Parm 1 Is a reference/pointer to a collection of data fields that define the characteristics of the line to be printed. These data fields are explained below.

 LineOutType

    Is the style of line you wish to draw.
 LineOut-Color

    Is the color of the line you wish to draw.
 LineOut-Width

    Is the width (in dots) of the line you wish to draw.
 LineOutFromX

    Is the X axis starting position of the line.
 LineOutFromY

    Is the Y axis starting position of the line.
 LineOutToX

    Is the X axis ending position of the line.
 LineOutToY

    Is the Y axis ending position of the line.

 Return Value
     A value of zero indicates success. A value of one indicates failure.

 Remarks
     Some common colors are provided but you may add your own colors by referring to the Document-Colors data item.
     Different line types or colors can be used to graph different items.

 Code Example
     SET LineOut-Solid TO TRUE.
     MOVE DOC-RED TO LineOut-Color.
     MOVE 5 TO LineOut-Width.
     MOVE 10 TO LineOutFromX.
     MOVE 10 TO LineOutFromY.
     MOVE 900 TO LineOutToX.
     MOVE 900 TO LineOutToY.
     PERFORM Doc-LineOut.
Doc-LineOut.
     Call 'S_Doc_LineOut' USING
         BY REFERENCE LineOut-Fields,
         GIVING RETURN-CODE-NUM.




Doc_PrintFile

    The Doc_PrintFile function reads a file and prints it to the selected printer.


Parm 1

    Is a reference/pointer to a collection of data fields that define the attributes of the printer. These data fields are explained in the Doc_Start routine above.

Parm 2

    Is a reference/pointer to a collection of data fields that define the attributes of the text to be printed. These data fields are explained in the Doc_TextOut routine above.

Parm 3

    Is a reference/pointer to a collection of data fields that define the attributes of a bitmap to be printed. These data fields are explained in the Doc_BitMapOut routine above.

Return Value
    A value of zero indicates success. A value of one indicates failure.

Remarks
    This routine is different from the previous routines as the normal Doc_Start, Draw routines, Doc_NewPage and Doc_End are not required.
    This routine will perform all the required steps to print the specified file. Complete with carriage returns, line feeds and page feeds. Most COBOL print programs can be easily modified to print to a file, then call this routine.
    Scaling of fonts for different resolution printers (300dpi,600dpi,ect) is done automatically.
    This routine is provided for a quick and simple method to allow COBOL programs to access Windows printers. The previous routines should be used when superior control of graphics, shapes, and mixed fonts are required.
    The print file can contain carriage-return, line-feed, and page feeds (x'0d', x'0a', x'0c') codes to separate lines. Most COBOL compilers insert these codes automatically with the advancing page/line option. Any character less than x'20' (space) other than these 3 characters will be ignored by the routine.
    The file specified should be a single character per byte file (ASCII). Unicode or wide character files are not supported at this time.
    The BitMap is not required. Leaving the BitMapOut-String field with low-values will cause only the text file to be printed. If the BitMap is defined, it is printed on every page. This can be used for check logos, ect. Transparent BitMaps should not be used with  this function, as scaling for varying printer resolution will not be performed.
    The order and size of these data fields should not be changed.
    Some common colors are provided but you may add your own colors by referring to the Document-Colors data item. Some common fonts provided but you may add other fonts by referring to the TextOut-Font data item.
    Be aware special fonts may not exist on another persons computer. If this happens you will need to install that font on that computer. Windows will try to match (as close as it can) a non-existing font, but the results are not always satisfactory.

Code Example
     SET PAPER-PORTRAIT TO TRUE.
     SET TextOut-Left TO TRUE.
     SET TextOut-LucidaConsole TO TRUE.
     MOVE 08 TO TextOut-CharacterSize.
     SET TextOut-Normal TO TRUE.
     MOVE Doc-Green TO TextOut-Color.
     SET TextOut-Italic-Off TO TRUE.
     SET TextOut-UnderLine-Off TO TRUE.
     SET TextOut-StrikeOut-Off TO TRUE.
     MOVE 1 TO TextOutX.
     MOVE 1 TO TextOutY.
     STRING 'your path & name of print file here', x'00' DELIMITED BY SIZE INTO TextOut-String.
     MOVE 300 to BitmapOutX.
     MOVE 250 to BitMapOutY.
     SET BitMapTransparent-No TO TRUE.
     STRING 'Path & name of bitmap file here', x'00' DELIMITED BY SIZE INTO BitMapOut-String.
     PERFORM Doc-PrintFile.
Doc-PrintFile.
     Call 'S_Doc_PrintFile' USING BY REFERENCE DocStart-Fields,
                                                  BY REFERENCE TextOut-Fields,
                                                  BY REFERENCE BitMapOut-Fields
                     GIVING RETURN-CODE-NUM.

Doc_NewPage

    The Doc_NewPage function creates a new and blank page which the application can draw upon. The previous page is saved. No pages will print until the Doc-End function is called. There are no parameters.

Return Value
    A value of zero indicates success. A value of one indicates failure.


Code Example
     PERFORM Doc_NewPage.
 Doc-NewPage.
     Call 'S_Doc_NewPage' GIVING RETURN-CODE-NUM.



Doc_End

    The Doc_End function completes the creation of the document and releases it to the choosen printer. An application must call this function in order to print. It is the last function called in the Doc family. There are no parameters.

Return Value
    A value of zero indicates success. A value of one indicates failure.

Code Example
     PERFORM Doc_End.
 Doc-End.
     Call 'S_Doc_End' GIVING RETURN-CODE-NUM.



Cobol CopyBook

A COBOL copybook complete with comments, parameters, documentation and sample code is included with the package.
